Cron job

​

What is Cron Job

Cron Job is a mechanism to trigger the agent at the right time, either:

• At a specific time (e.g. every day at 7 AM)
• At regular intervals (e.g. every 30 minutes)
• When certain events occur (e.g. file changes)

This allows the agent to operate asynchronously, even when you are not actively interacting with it.

​

Types of Cron Jobs

There are three main types:

​

Heartbeat (Interval-based)

Runs tasks repeatedly at fixed intervals.

• Configure a time interval (e.g. every 30 minutes)
• Executes all tasks defined in HEARTBEAT.md
• Suitable for:
  • Periodic checks
  • Monitoring workflows
  • Batch processing

​

Scheduled Tasks (Time/Event-based)

Runs tasks at specific times or based on triggers.

• Time-based options:
  • Daily, weekly, monthly
  • One-time execution
  • Custom intervals
• Event-based:
  • File Watch（Triggered when files are added, modified, or deleted）

​

Webhook（External Event-based）

Webhook allows external systems to trigger an agent task through an HTTP POST request. Instead of running automatically based on time, webhook tasks are executed when an external service sends a request to the generated webhook endpoint. Common use cases:

• Trigger an agent workflow after a system event
• Connect CodeBanana with external services
• Automate workflows based on third-party events

Examples:

• A CI/CD system triggers an agent to review deployment results
• A monitoring system sends an alert and asks the agent to analyze the issue
• An external application triggers a report generation workflow

​

How to Choose

1. Is this a one-time task or reminder?
   • Yes → Use Scheduled Task
   • No → Continue
2. Does the task need to run at an exact time?
   • Yes → Use Scheduled Task
   • No → Continue
3. Can this task be grouped with other periodic checks?
   • Yes → Use Heartbeat (add it to HEARTBEAT.md)
   • No → Use Scheduled Task
4. Is the task triggered by file changes or events?
   • Yes → Use Scheduled Task (File Watch)
   • No → Contine
5. Is the task triggered by external event？
   • Yes → Use Webhook
   • No → Follow the rules above

​

Configuration

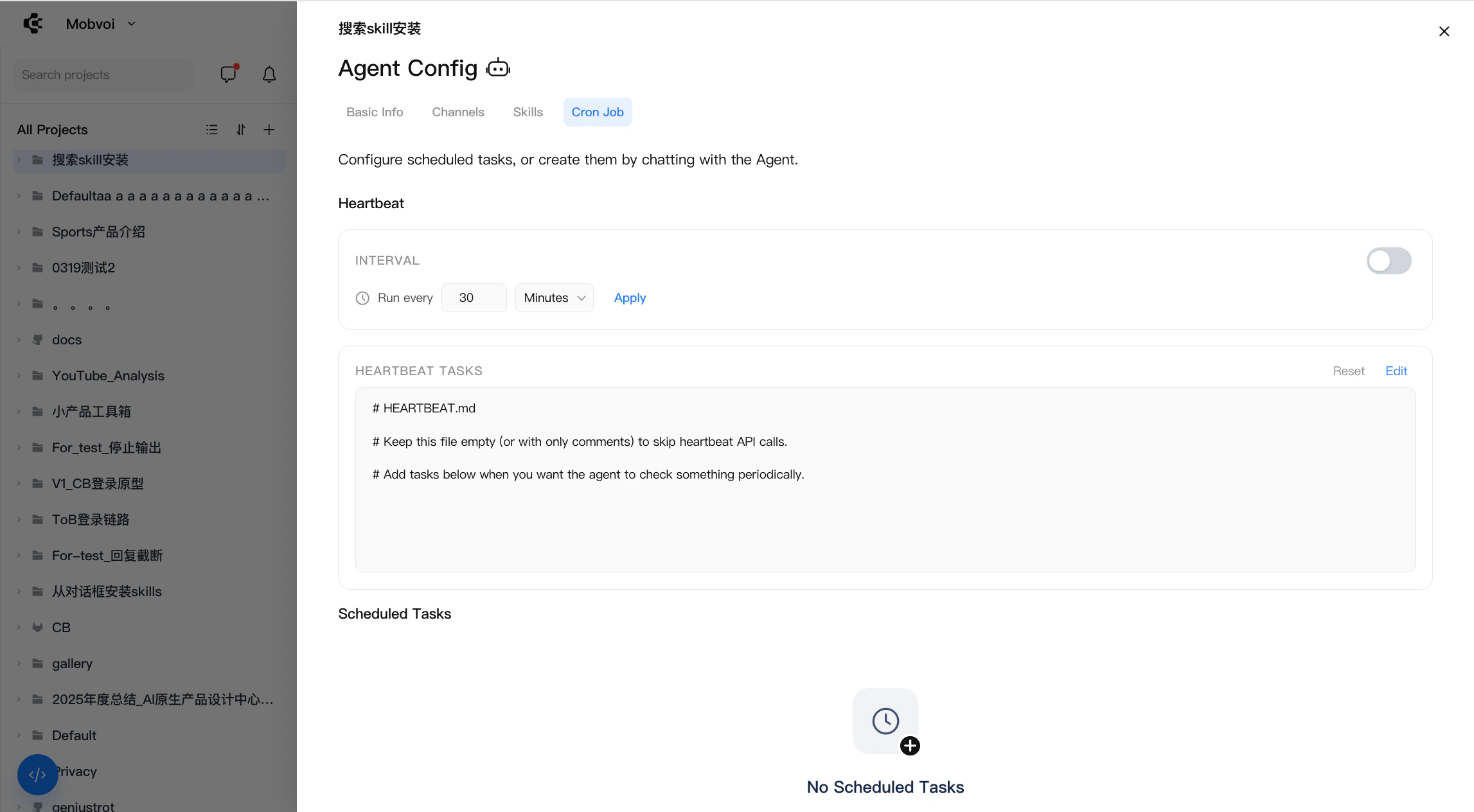

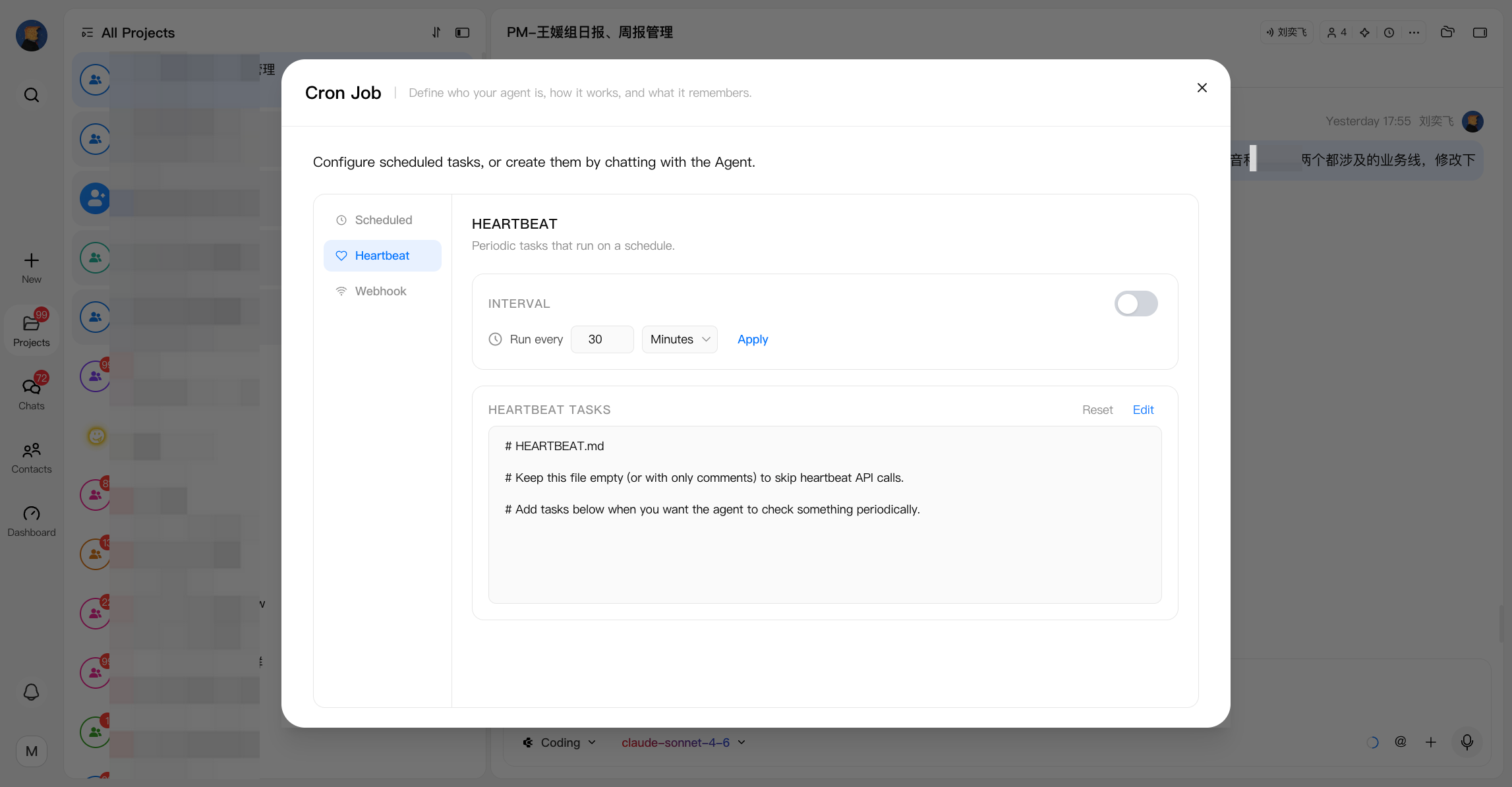

Heartbeat

1. Enable Heartbeat by turning on the toggle on the right panel
2. Set the execution interval (e.g. every 10 minutes, 30 minutes, etc.)
3. The system will automatically execute all tasks defined in HEARTBEAT.md at each interval

Task management:

• Click Edit next to HEARTBEAT.md to modify tasks
• Click Reset to restore the default configuration

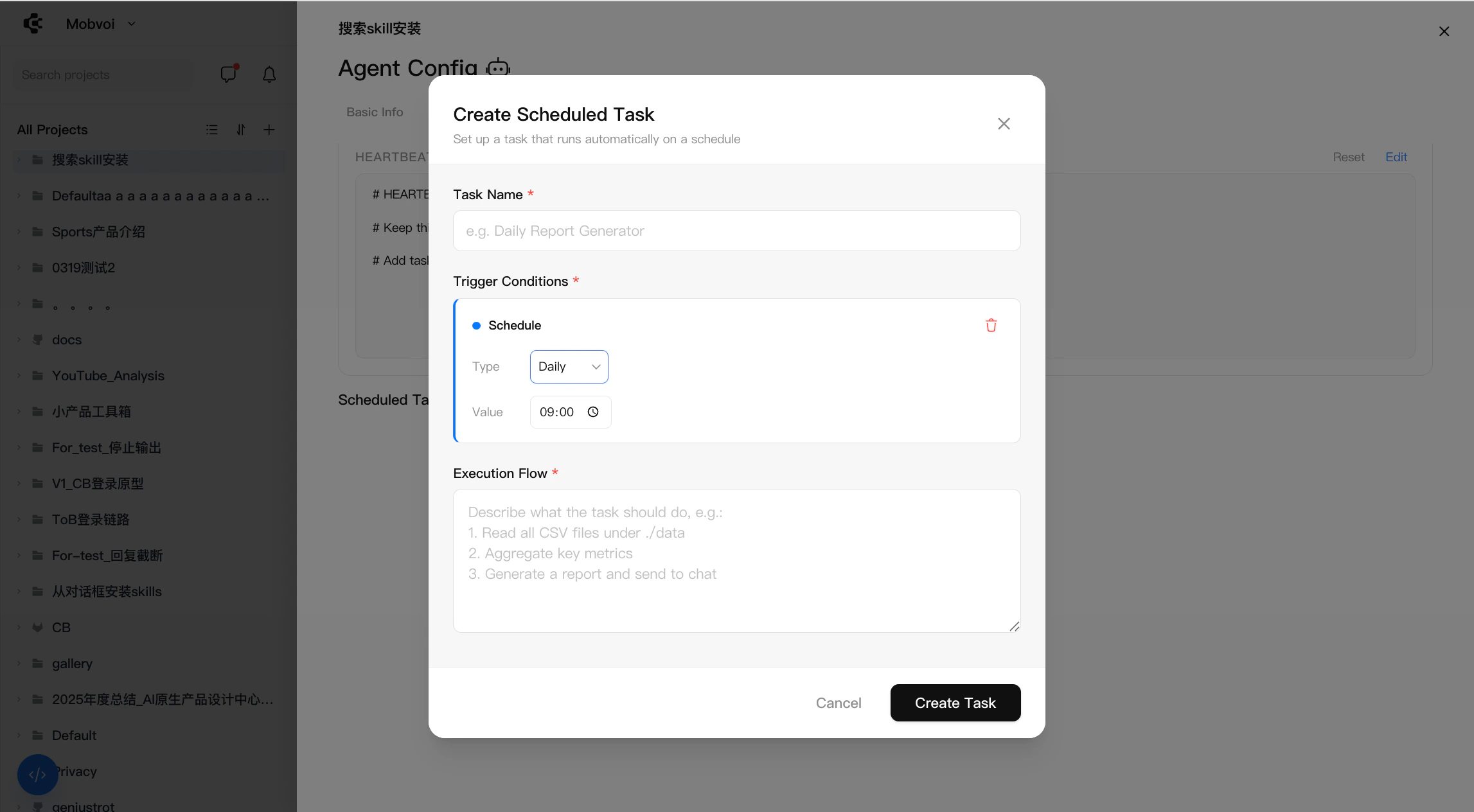

Scheduled Task

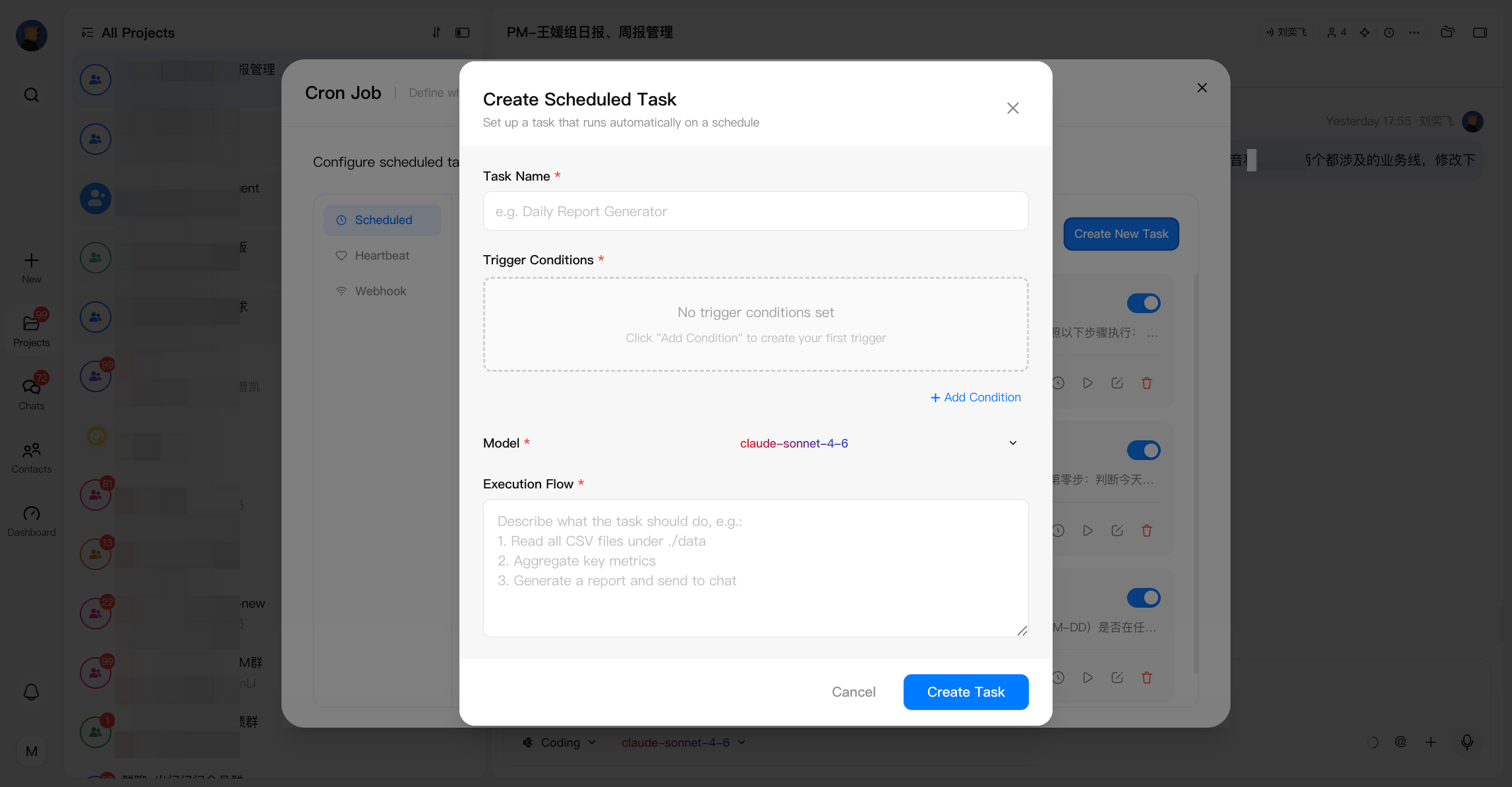

1. Click Create New Task to create a task
2. Define Trigger Conditions, which determine when the task runs:
   • Scheduled (time-based) Choose from:
     • Daily — run at a specific time each day
     • Weekly — run on a specific day and time
     • Monthly — run on a specific date and time
     • Once — run a single time
     • Every — run at a fixed interval
   • File Watch (event-based) Triggered when changes occur in a selected directory:
     • File created
     • File modified
     • File deleted Example: trigger a task when an Excel file is deleted from a folder
3. Configure the Execution Flow
   • Choose a model to execute the task, which can be edited later
   • Define what the agent should do when the task is triggered
   • This can include any automated action or workflow handled by the agent

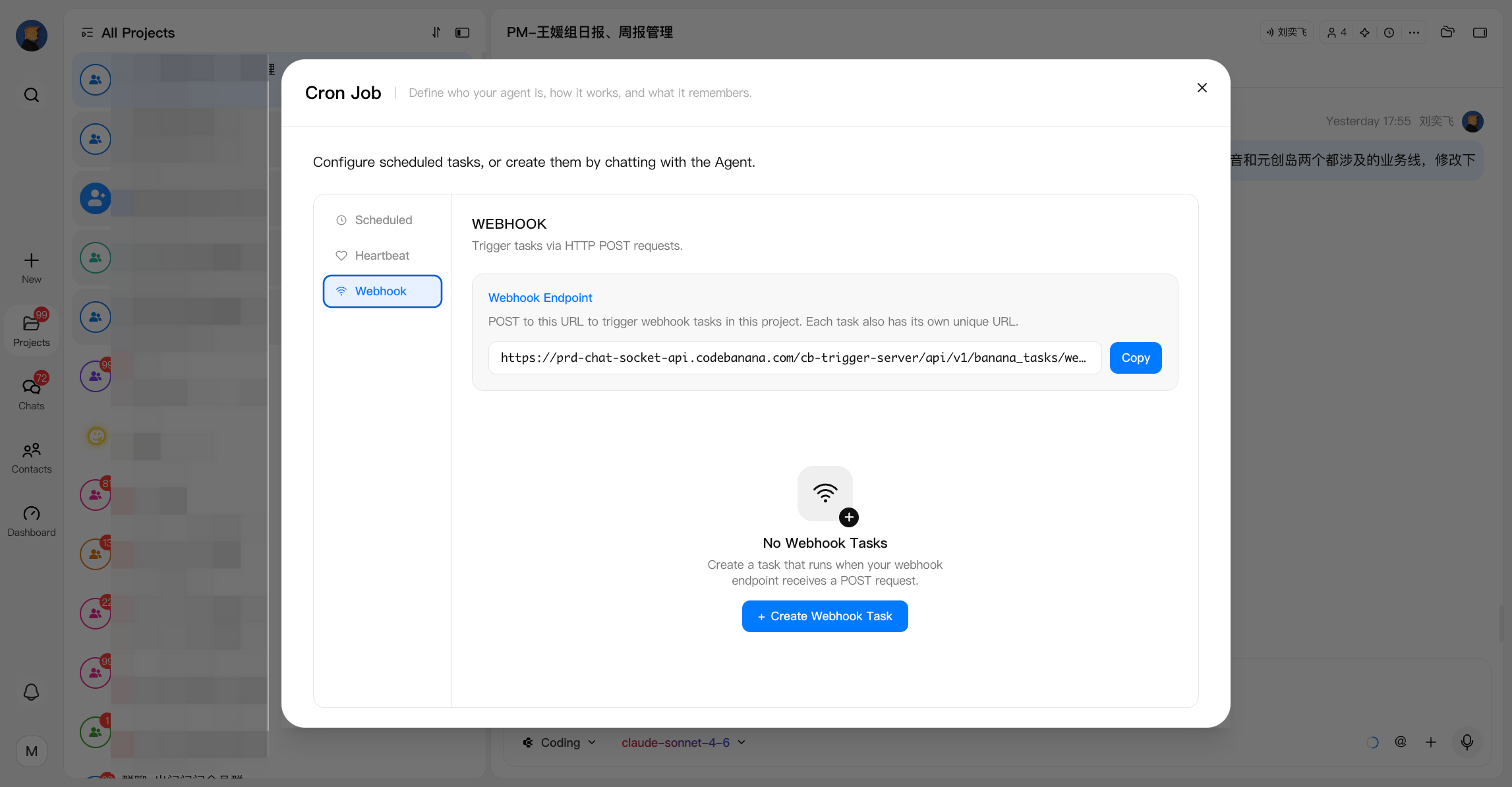

Webhook Task

1. Select Webhook as the trigger type

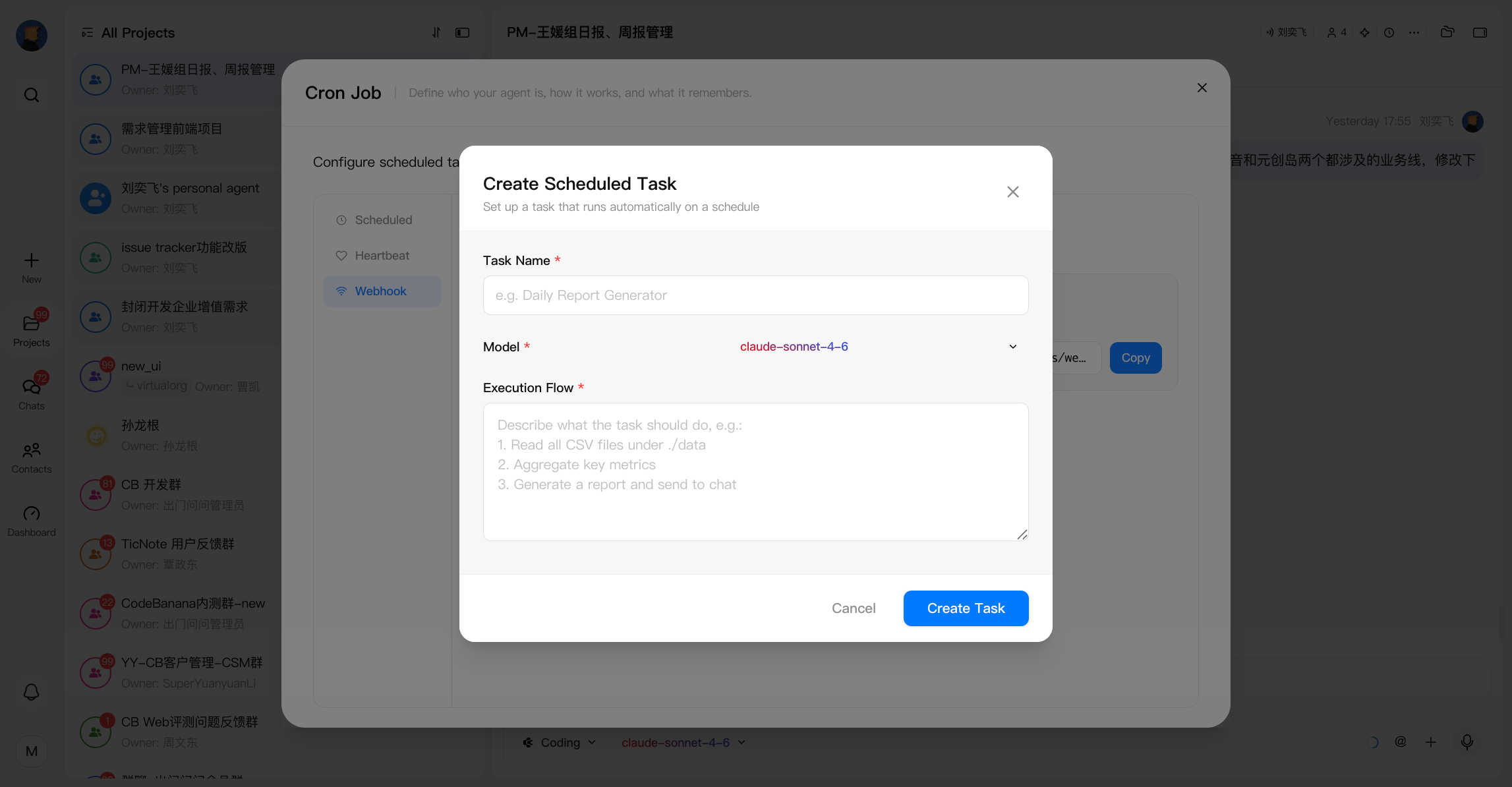

2. Click Create Webhook Task
3. Configure:
   • Task Name
   • Model
   • Execution Flow

When the endpoint receives an HTTP POST request, the agent automatically starts executing the configured workflow.
